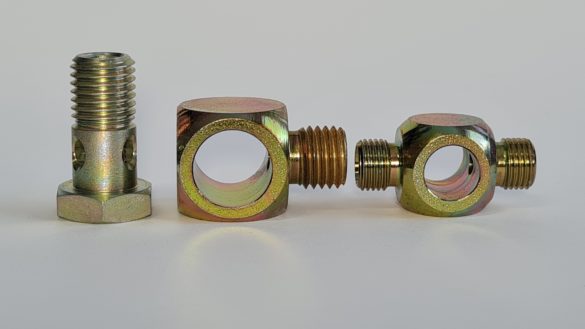

Flow screws and banjo couplings of adjustable connecting pieces
FLOW SCREWS AND BANJO COUPLINGS OF ADJUSTABLE CONNECTING PIECES
Screws according to ČSN 13 7990 – metric thread, ČSN 13 7991 – pipe thread
Banjo couplings according to ČSN 13 7970 – one-sided connection, ČSN 13 7976 – bilateral connection
Important” assortment producedand delivered only on order !
Order: PRŮTOKOVÝ ŠROUB Js 3-13 7990 (Screw)
Order: OKO PŘÍPOJKY Js 3-13 7970 (Banjo coupling)
Flow screw according to ČSN 13 7990
| Js | D | L | L1 | s | Trade description |
|---|---|---|---|---|---|
| 3 | M 10×1 | 30 | 25 | 14 | Js 3-137990 |
| 4 | M 10×1 | 30 | 25 | 14 | Js 4-137990 |
| 5 | M 12×1,5 | 35 | 30 | 17 | Js 5-137990 |
| 6 | M 12×1,5 | 38 | 33 | 19 | Js 6-137990 |
| 8 | M 16×1,5 | 49 | 43 | 22 | Js 8-137990 |
| 10 | M 16×1,5 | 49 | 43 | 24 | Js 10-137990 |
| 13 | M 20×1,5 | 53 | 47 | 27 | Js 13-137990 |
| 15 | M 27×1,5 | 67 | 59 | 32 | Js 15-137990 |
Flow screw according to ČSN 13 7991
| Js | D | L | L1 | s | Trade description. |
|---|---|---|---|---|---|
| 3 | G 1/8″ | 30 | 25 | 14 | Js 3-137991 |
| 4 | G 1/8″ | 30 | 25 | 14 | Js 4-137991 |
| 5 | G 1/4″ | 35 | 30 | 17 | Js 5-137991 |
| 6 | G 1/4″ | 38 | 33 | 19 | Js 6-137991 |
| 8 | G 3/8″ | 49 | 43 | 22 | Js 8-137991 |
| 10 | G 3/8″ | 49 | 43 | 24 | Js 10-137991 |
| 13 | G 1/2″ | 53 | 47 | 27 | Js 13-137991 |
| 15 | G 3/4″ | 67 | 59 | 32 | Js 15-137991 |
Banjo coupling according to ČSN 13 7970
| Js | D | L | L1 | s | Trade description |
|---|---|---|---|---|---|
| 3 | M 10×1 | 22 | 16,5 | 17 | Js 3-137970 |
| 4 | M 10×1 | 22 | 16,5 | 17 | Js 4-137970 |
| 5 | M 12×1,5 | 27 | 21 | 20 | Js 5-137970 |
| 6 | M 14×1,5 | 30 | 22 | 22 | Js 6-137970 |
| 8 | M 16×1,5 | 39 | 27 | 30 | Js 8-137970 |
| 10 | M 18×1,5 | 39 | 28 | 30 | Js 10-137970 |
| 13 | M 22×1,5 | 42 | 29 | 32 | Js 13-137970 |
| 15 | M 27×1,5 | 53 | 35 | 40 | Js 15-137970 |
Banjo coupling according to ČSN 13 7976
| Js | D | L | L1 | s | Trade description |
|---|---|---|---|---|---|
| 3 | M 10×1 | 22 | 16,5 | 17 | Js 3-137976 |
| 4 | M 10×1 | 22 | 16,5 | 17 | Js 4-137976 |
| 5 | M 12×1,5 | 27 | 21 | 20 | Js 5-137976 |
| 6 | M 14×1,5 | 30 | 22 | 22 | Js 6-137976 |
| 8 | M 16×1,5 | 39 | 27 | 30 | Js 8-137976 |
| 10 | M 18×1,5 | 39 | 28 | 30 | Js 10-137976 |
| 13 | M 22×1,5 | 42 | 29 | 32 | Js 13-137976 |
| 15 | M 27×1,5 | 53 | 35 | 40 | Js 15-137976 |
